EV Charging Cables T2 - T2

Charging cables with type 2 plug on both sides

Show fewer

Need a charging cable to charge your electric car or plug-in hybrid? At Ratio Electric, we offer high-quality charging cables with type 2 plugs. We guarantee a reliable, high-quality charging cable that can be used at home, at work or on the road. The Type 2 to Type 2 charging cable is available in different lengths and ratings, making them suitable for almost all situations.

Ratio charging cable Type 2 to Type 2 for every charging need

At Ratio, we offer charging cables T2 - T2 in lengths ranging from 2 to 15 metres and maximum power ratings from 3.7kW to 22kW. As a result, we always offer the right cable for your specific situation and requirements. Are you looking for a short charging cable for home charging or the right longer charging cable for a public charging station? At Ratio Electric, we offer the right solution.

Quality Type 2 - Type 2 charging cables from Ratio

Ratio's Type 2 to Type 2 charging cables are available in two versions: the E-Line with screwed-on plug and the Premium line with moulded-on plug. Both versions have high-quality and flexible PUR cables. The cables are also UV-resistant and have a very long service life. The Premium line offers some extra luxury with extra protection against moisture and dirt. This makes the cable wear even less quickly and therefore last even longer.

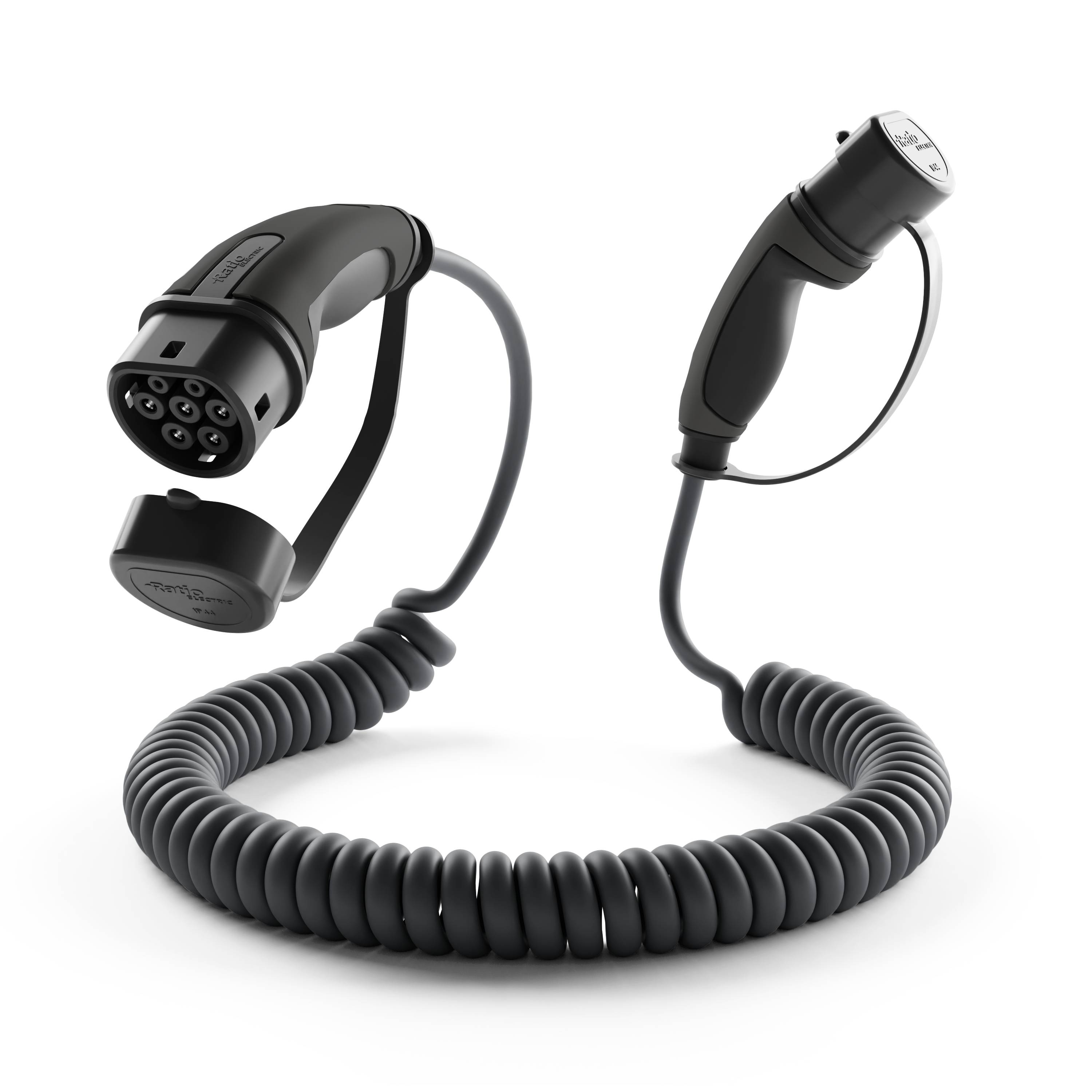

T2 - T2 charging cables spiralised or non-spiralised

With the Ratio T2 - T2 charging cables, you can choose between a spiralised (coiled) or non-spiralised (straight) charging cable. Which charging cable suits you best depends on personal preference and also how you use it. A coiled charging cable is ideal if you want to keep the cable as compact as possible and avoid tangling. In turn, a straight cable offers more flexibility and length.

High quality durable charging cables T2 - T2

Our charging cables at Ratio Electric are made of high-quality, very durable materials and can withstand all weather conditions. With a Ratio charging cable, you are guaranteed a long service life and maximum protection against damage and wear. They are made for everyday use, both at home and at public charging stations.

Safe Type 2 to Type 2 charging cable

Ratio T2 - T2 charging cables meet all safety standards, are CE marked and approved by Dekra. They also have built-in temperature sensors to prevent overheating. So you always charge your electric car safely and quickly.

'Made in Holland' sustainable charging cables
Universal charging cable: works on all car brands brand type 2 input
High-quality and flexible PUR cable for long service life
Good UV resistance
Choice between:: E-line with screwed-on plug and PREMIUM line with moulded-on plug
5-year warranty and Dekra/CE certified

39925 EV Charging Cables T2 - T2 Charging cables with type 2 plug on both sides

EV Charging cable T2-T2 7,4kW 4m coiled E-line

Item no.

39925

MAX. POWER (kW)

7,4

LENGTH (m)

VERSION

E-line

COILED

yes

Request quote

	Article	Description	MAX. POWER (kW)	LENGTH (m)	VERSION	COILED	Order
	39925	EV Charging cable T2-T2 7,4kW 4m coiled E-line	7,4	4	E-line	yes
MAX. POWER (kW) 7,4 LENGTH (m) 4 VERSION E-line COILED yes Surface treatment contacts Nickel-plated Contact material CuZn Cable type Spiralized With temperature sensor No Nominal voltage 230 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC single phase more info »
	39935	EV Charging cable T2-T2 11kW 4m coiled E-line	11	4	E-line	yes
MAX. POWER (kW) 11 LENGTH (m) 4 VERSION E-line COILED yes Surface treatment contacts Nickel-plated Contact material CuZn Cable type Spiralized With temperature sensor No Nominal voltage 400 V Nominal current 16 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39931	EV Charging cable T2-T2 11kW 5m E-line	11	5	E-line	no
MAX. POWER (kW) 11 LENGTH (m) 5 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 16 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39932	EV Charging cable T2-T2 11kW 7,5m E-line	11	7,5	E-line	no
MAX. POWER (kW) 11 LENGTH (m) 7,5 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 16 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39933	EV Charging cable T2-T2 11kW 10m E-line	11	10	E-line	no
MAX. POWER (kW) 11 LENGTH (m) 10 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 16 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39934	EV Charging cable T2-T2 11kW 15m E-line	11	15	E-line	no
MAX. POWER (kW) 11 LENGTH (m) 15 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 16 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39940	EV Charging cable T2-T2 22kW 2m E-line	22	2	E-line	no
MAX. POWER (kW) 22 LENGTH (m) 2 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39941	EV Charging cable T2-T2 22kW 5m E-line	22	5	E-line	no
MAX. POWER (kW) 22 LENGTH (m) 5 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39942	EV Charging cable T2-T2 22kW 7,5m E-line	22	7,5	E-line	no
MAX. POWER (kW) 22 LENGTH (m) 7,5 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39943	EV Charging cable T2-T2 22kW 10m E-line	22	10	E-line	no
MAX. POWER (kW) 22 LENGTH (m) 10 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
	39944	EV Charging cable T2-T2 22kW 15m E-line	22	15	E-line	no
MAX. POWER (kW) 22 LENGTH (m) 15 VERSION E-line COILED no Surface treatment contacts Nickel-plated Contact material CuZn Cable type Straight With temperature sensor No Nominal voltage 400 V Nominal current 32 A Charging mode Mode 3 With Incable Control Box (ICCB) No Type infrastructure side Type 2 Type vehicle side Type 2 Number of communication conductors 2 Type of current AC 3-phase more info »
