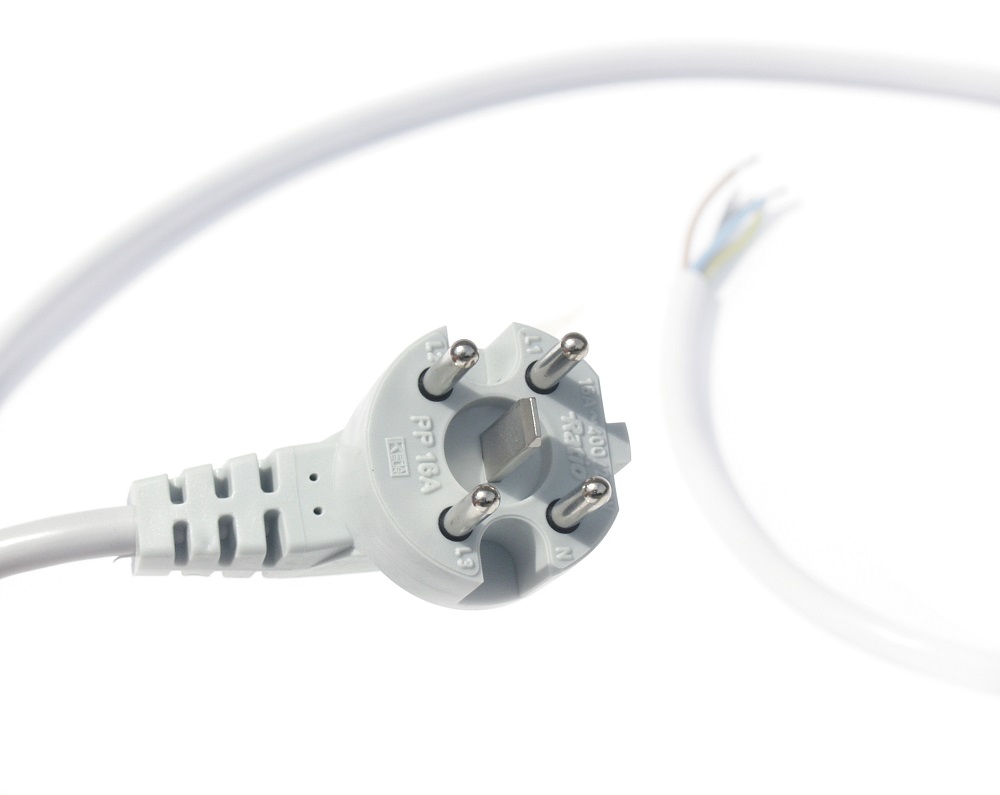

Perilex Cords

Three-phase voltage plug system

Show fewer

Perilex cords are known as reliable electrical connections for high-power devices. This plug is designed for a safe and stable connection to the mains, especially for applications requiring a three-phase power supply. The 3-phase Perilex connection allows high-power appliances, such as induction hobs, to be efficiently supplied. This system uses Perilex cables, which ensure a consistent and reliable power supply to the connected devices. Perilex cables are specifically designed to meet the requirements of high-power installations, where safety and reliability are paramount. By using high-quality materials and carefully designed connections, Perilex power cords offer optimal performance and durability. Whether for domestic applications, such as connecting electric ventilation boxes, or industrial applications, where high-voltage current is required, the 3-phase Perilex system offers a versatile solution for various electrical needs. Discover the benefits of our Perilex cables for your electrical installations today. With these Perilex plugs and cables you are assured of a safe and powerful solution.

Reliable crimp contacts
Compact construction
Integrated strain relief
DEKRA type approval
Savings on installation time and assembly costs
The Perilex cords are available from stock within 1 day

1738 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, grey, 6A 1.25m

Item no.

1738

MAX. RATING

6A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H05VV-F 5G0,75mm²

CABLE LENGTH (m)

1,25

Request quote

view productdetails

1737 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, grey, 6A 2m

Item no.

1737

MAX. RATING

6A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H05VV-F 5G0,75mm²

CABLE LENGTH (m)

2,0

Request quote

view productdetails

1750 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, black, 16A 1.5m

Item no.

1750

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

1,5

Request quote

view productdetails

1751 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, black, 16A 2m

Item no.

1751

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

2,0

Request quote

view productdetails

1752 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, black, 16A 3m

Item no.

1752

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

3,0

Request quote

view productdetails

1753 Perilex Cords Three-phase voltage plug system

Perilex Power Cord, black, 16A 4m

Item no.

1753

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

4,0

Request quote

view productdetails

Perilex Power Cord, grey, 6A 1.25m

Item no.

1738

MAX. RATING

6A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H05VV-F 5G0,75mm²

CABLE LENGTH (m)

1,25

Request quote

view productdetails

Perilex Power Cord, grey, 6A 2m

Item no.

1737

MAX. RATING

6A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H05VV-F 5G0,75mm²

CABLE LENGTH (m)

2,0

Request quote

view productdetails

Perilex Power Cord, black, 16A 1.5m

Item no.

1750

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

1,5

Request quote

view productdetails

Perilex Power Cord, black, 16A 2m

Item no.

1751

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

2,0

Request quote

view productdetails

Perilex Power Cord, black, 16A 3m

Item no.

1752

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

3,0

Request quote

view productdetails

Perilex Power Cord, black, 16A 4m

Item no.

1753

MAX. RATING

16A, 250V/400V

PLUG

Perilex

CONNECTOR

open end

CABLE

H07RN-F 5G1,50mm²

CABLE LENGTH (m)

4,0

Request quote

view productdetails

	Article	Description	MAX. RATING	PLUG	CONNECTOR	CABLE	CABLE LENGTH (m)	Order
	1738	Perilex Power Cord, grey, 6A 1.25m	6A, 250V/400V	Perilex	open end	H05VV-F 5G0,75mm²	1,25
MAX. RATING 6A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H05VV-F 5G0,75mm² CABLE LENGTH (m) 1,25 more info »
	1737	Perilex Power Cord, grey, 6A 2m	6A, 250V/400V	Perilex	open end	H05VV-F 5G0,75mm²	2,0
MAX. RATING 6A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H05VV-F 5G0,75mm² CABLE LENGTH (m) 2,0 Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Class None With cord switch No Oil resistant according to EN IEC 60811-404 No Degree of protection (IP) IP20 With protective conductor Yes Spiralized cable No Colour outer sheath Grey Frequency 50 Hz Nominal voltage 230 V Nominal current 6 A Material outer sheath Polyvinyl chloride (PVC) Length 2 m Number of cores 5 Connector system system-oriented Yes Connection 2 Cable end sleeve Connection 1 Other more info »
	1750	Perilex Power Cord, black, 16A 1.5m	16A, 250V/400V	Perilex	open end	H07RN-F 5G1,50mm²	1,5
MAX. RATING 16A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H07RN-F 5G1,50mm² CABLE LENGTH (m) 1,5 Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Class None With cord switch No Oil resistant according to EN IEC 60811-404 No Degree of protection (IP) IP20 With protective conductor Yes Spiralized cable No Colour outer sheath Black Frequency 50 Hz Nominal voltage 230 V Nominal current 16 A Material outer sheath Rubber Length 1.5 m Number of cores 5 Connector system system-oriented Yes Connection 2 Cable end sleeve Connection 1 Other more info »
	1751	Perilex Power Cord, black, 16A 2m	16A, 250V/400V	Perilex	open end	H07RN-F 5G1,50mm²	2,0
MAX. RATING 16A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H07RN-F 5G1,50mm² CABLE LENGTH (m) 2,0 Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Class None With cord switch No Oil resistant according to EN IEC 60811-404 No Degree of protection (IP) IP20 With protective conductor Yes Spiralized cable No Colour outer sheath Black Frequency 50 Hz Nominal voltage 230 V Nominal current 16 A Material outer sheath Rubber Length 2 m Number of cores 5 Connector system system-oriented Yes Connection 2 Cable end sleeve Connection 1 Other more info »
	1752	Perilex Power Cord, black, 16A 3m	16A, 250V/400V	Perilex	open end	H07RN-F 5G1,50mm²	3,0
MAX. RATING 16A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H07RN-F 5G1,50mm² CABLE LENGTH (m) 3,0 Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Class None With cord switch No Oil resistant according to EN IEC 60811-404 No Degree of protection (IP) IP20 With protective conductor Yes Spiralized cable No Colour outer sheath Black Frequency 50 Hz Nominal voltage 230 V Nominal current 16 A Material outer sheath Rubber Length 3 m Number of cores 5 Connector system system-oriented Yes Connection 2 Cable end sleeve Connection 1 Other more info »
	1753	Perilex Power Cord, black, 16A 4m	16A, 250V/400V	Perilex	open end	H07RN-F 5G1,50mm²	4,0
MAX. RATING 16A, 250V/400V PLUG Perilex CONNECTOR open end CABLE H07RN-F 5G1,50mm² CABLE LENGTH (m) 4,0 Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Class None With cord switch No Oil resistant according to EN IEC 60811-404 No Degree of protection (IP) IP20 With protective conductor Yes Spiralized cable No Colour outer sheath Black Frequency 50 Hz Nominal voltage 230 V Nominal current 16 A Material outer sheath Rubber Length 4 m Number of cores 5 Connector system system-oriented Yes Connection 2 Cable end sleeve Connection 1 Other more info »
