Prolink Cordsets
The connection system for pluggable installations
- Connector: Prolink Male

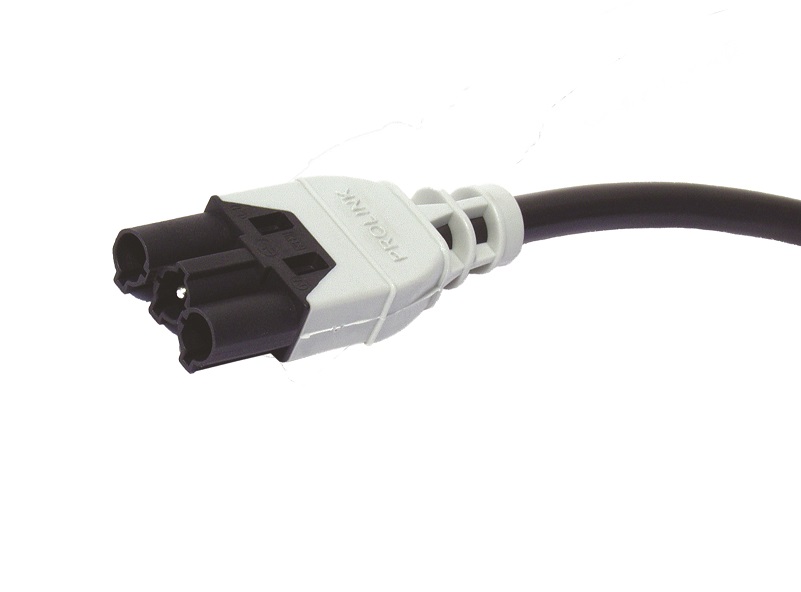

- Connector: Prolink Female
- DEKRA test
Item no.
1774-05
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
0,5
Item no.
1774-10
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
1
Item no.
1774-20
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
2
Item no.
1774-30
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
3
Item no.
1774-40
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
4
Item no.
1774-50
MAX. RATING
16A/250V
PLUG
Prolink male
CONNECTOR
Prolink female
CABLE
H05VV-F 3G1,50mm²
CABLE LENGTH (m)
5
| Article | Description | MAX. RATING | PLUG | CONNECTOR | CABLE | CABLE LENGTH (m) | Order | |
| 1774-05 | Power Cord Prolink male-female, 16A 0.5m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 0,5 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 0,5 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
| 1774-10 | Power Cord Prolink male-female, 16A 1m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 1 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 1 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
| 1774-20 | Power Cord Prolink male-female, 16A 2m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 2 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 2 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
| 1774-30 | Power Cord Prolink male-female, 16A 3m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 3 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 3 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
| 1774-40 | Power Cord Prolink male-female, 16A 4m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 4 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 4 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
| 1774-50 | Power Cord Prolink male-female, 16A 5m | 16A/250V | Prolink male | Prolink female | H05VV-F 3G1,50mm² | 5 | ||
MAX. RATING 16A/250V PLUG Prolink male CONNECTOR Prolink female CABLE H05VV-F 3G1,50mm² CABLE LENGTH (m) 5 Reaction-to-fire according to EN 13501-6: Class Eca Rated surge voltage 4 kV Surface treatment contacts Other Fire load 0 kWh Halogen free No Cable permanent temperature-resistant to 70 °C Type of locking Integrated in plug-in connector Pole codification L, N, PE Colour outer sheath Black Dismantle length 40 mm Cable type H05VV-F Housing colour White Colour coding/contact insert Other Mechanical coding Yes Conductor end treatment Cable end sleeves Type side 2 Bus Type side 1 Plug Type of finished cable Connecting cable Degree of protection (IP) IP20 Number of poles 3 Rated current 16 A Rated voltage 250 V | ||||||||
